Harmonic Solution for EC Fan

EC fans are widely used in data centers, HVAC systems, and industrial cooling due to their high efficiency, low noise, and intelligent speed control. However, their power electronic drives generate harmonic currents that may affect power quality and system stability. Dedicated EC fan harmonic filters use LC passive filtering technology to reduce harmonics, improve power factor, and enhance power supply reliability.

Solution Overview Harmonic Hazards What is it Principles Features Advantages Test System Applications Conclusion Related Products Related Cases Related Articles

Overview of EC Fans and Harmonics

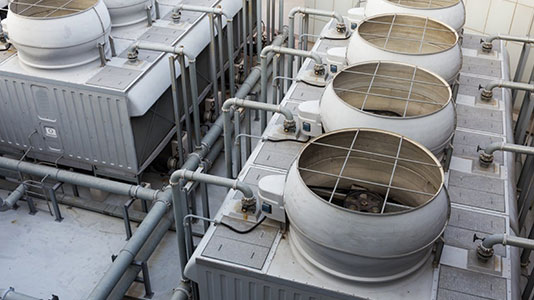

EC fans, with their advantages of high efficiency, low noise, and intelligent speed regulation, have been widely used in data centers, HVAC systems, and industrial cooling. However, due to their use of power electronic drive technology, they generate certain harmonic currents during operation, which may lead to degraded power quality, equipment overheating, reduced power factor, and increased system losses.

With the trend towards large-scale and centralized applications, harmonic mitigation for EC fans has become a crucial aspect of ensuring power supply stability and improving system operating efficiency.

Product or Solution Inquiry

Harmonic Hazards

Harmonic impacts span efficiency, equipment, reliability, and cost—an invisible drain on power systems.

1

Increased System Losses and Equipment Overheating/Derating

Harmonic currents generate additional losses in transformers, cables, and distribution equipment, leading to heating, reduced capacity, and lower overall system efficiency.
2

Impact on EC Fan Reliability

Harmonics and voltage distortion can affect the stability of EC fan drive modules, increase thermal stress on power devices, accelerate equipment aging, and shorten service life.
3

Power Supply Abnormalities and Unplanned Downtime

Harmonics may cause protective devices to malfunction and electrical equipment to operate abnormally, increasing the risk of critical equipment downtime.
4

Power Factor Reduced and Operating Costs Increased

Harmonics increase reactive current in the system, lower the power factor, result in higher electricity bills, and may raise the capacity requirements for UPS, transformers, and other equipment.

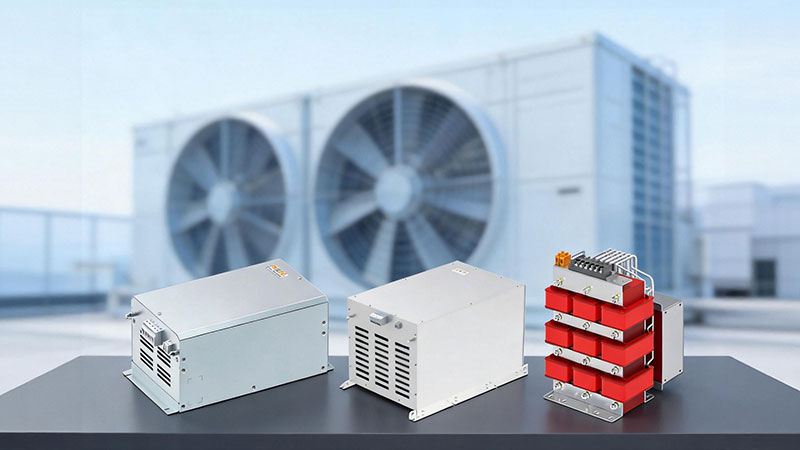

What is a Passive Harmonic Filter for EC Fans?

EC fans harmonic filter is a filtering device designed to improve the power quality of EC (Electronically Commutated) fan systems. It is mainly composed of passive components such as inductors, capacitors, and resistors. Through an optimally designed filtering network, it provides a low-impedance path for the characteristic harmonics generated by the power electronic drives of EC fans, effectively reducing harmonic currents, improving system power factor, and minimizing line losses and equipment heating.

The EC fans harmonic filter for EC fans can enhance the stability of the power supply system and meet the power quality requirements of various application scenarios.

Check out our products

Technical Principle of Sikes Dedicated Filter for EC Fans

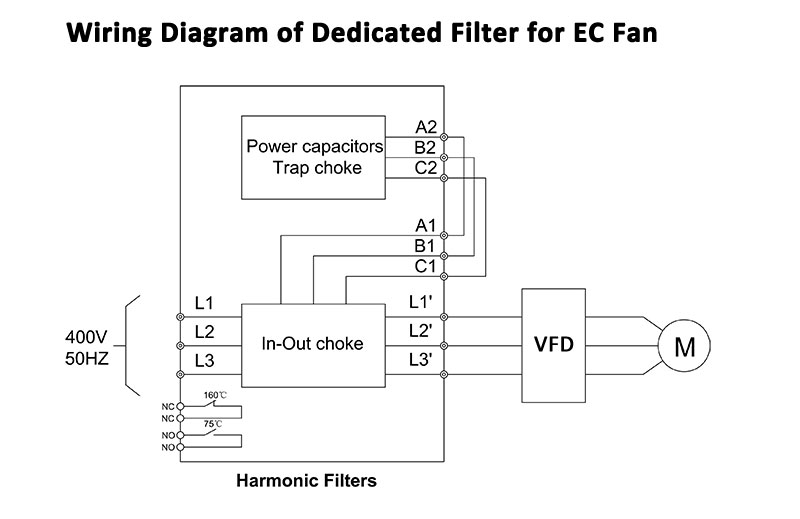

Sikes dedicated filter for EC fans employs LC passive filtering technology, forming a harmonic filtering network through line/load reactors and power capacitors. When the EC fan is in operation, the harmonic currents generated by the internal rectifier and power electronic drive unit enter the filtering system. The filter then provides a low-impedance bypass path for harmonics at specific frequencies, allowing the harmonic currents to circulate within the filter branch and thereby reducing the harmonic components injected into the utility grid.

At the same time, the capacitor components in the filter provide an appropriate amount of reactive power compensation, working in coordination with the reactors to improve the system power factor, reduce line currents, and minimize equipment heating losses. Through optimized filter parameter design, the current waveform can be effectively improved, the THDi (Total Harmonic Current Distortion) can be reduced, and the stability of the power supply system can be enhanced.

This solution consists of passive components, featuring a simple structure and high reliability, with no need for complex control or software commission. It is suitable for EC fan systems with relatively stable load characteristics, and can effectively mitigate the impact of harmonic interference in critical applications such as data centers, building ventilation systems, and industrial cooling equipment.

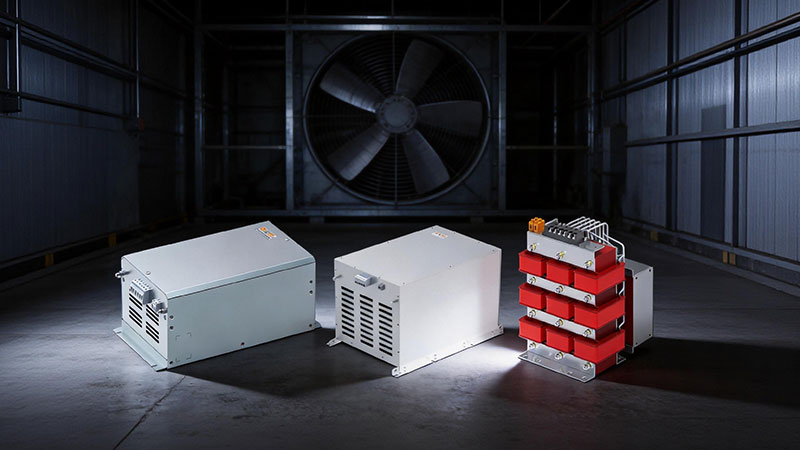

Features of Sikes Dedicated Harmonic Filter for EC Fans

Suppress harmonics at source, improve efficiency and reliability, reduce equipment losses and extra costs

Ultra-low Harmonic Distortion

THDi < 5%, effectively suppressing harmonic currents generated by EC fans and improving grid power quality.
High Power Factor Correction

Power factor up to 99%, reducing reactive power losses and enhancing power supply efficiency.
High Power-density design

Utilizing high-performance components, with a single-unit power correction capability exceeding 6.3 kW, achieving a compact and efficient design.
Excellent Voltage Quality

Providing a stable and clean power environment, ensuring reliable operation of sensitive equipment such as servers and control systems.
High-reliability Operation Guarantee

Minimizing equipment interference, abnormal shutdowns, and operational risks caused by harmonics, ensuring continuous and stable operation of cooling systems.
Energy-saving & Environmentally Friendly Operation

Reducing system losses, improving energy efficiency, and achieving low-noise, cost-effective, and economical operation.

Advantages of Sikes Dedicated Harmonic Filter for EC Fans

Supports centralized conditioning, wide load range, broad brand compatibility, with independent test verification

Flexible Capacity Matching for Multiple EC fans

The capacity of a single filter unit can be flexibly adapted to the number of fans connected, supporting up to 10 EC fans per filter. This meets the needs of centralized harmonic suppression while offering high cost-effectiveness and space savings.
Efficient Harmonic Reduction and Power Factor Improvement

Under rated conditions, THDi can be kept below 5%; at 50% load, THDi is approximately 6%. The power factor can reach up to 99%, effectively cutting line losses and equipment heating.
Stable Operation Over a Wide Load Range

Capable of operating from 1% to 100% load, the filter effectively reduces harmonic fluctuations, false alarms, and system resonance risks, thereby enhancing the stability of cooling and ventilation systems.

Compatibility with Major EC Fan Brands

Compatible with leading brands such as EBM, ZIEHL-ABEGG, and Fans-tech, facilitating system integration across diverse application scenarios.
Improved Power Quality and Reduced Operating Costs

Minimizes energy losses and thermal caused by current distortion, mitigates harmonic impacts on data centers, precision equipment, transformers, and distribution networks, and boosts overall supply reliability.
Cost-effective Passive Filtering Solution

Built with passive components (inductors, capacitors, resistors) in a simple, highly reliable structure, suitable for harmonic suppression in EC fan systems with relatively stable loads.

Verified by a Dedicated Test System

Using Sikes self-developed EC fan test bench, which covers varying fan counts and load ranges, the filter’s actual performance and harmonic suppression effectiveness are rigorously validated under real‑world conditions.

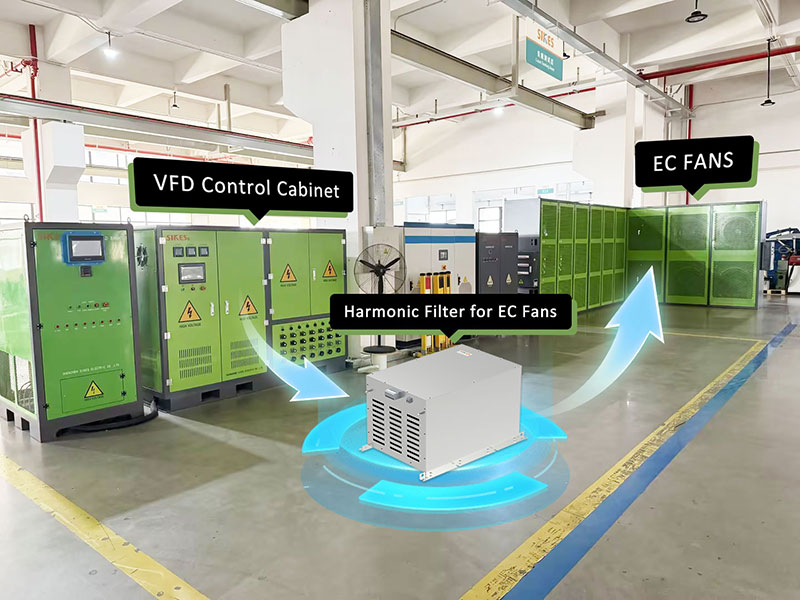

Sikes Test System for EC Fan Harmonic Filters

To verify the filtering performance and system compatibility of EC fans harmonic filters, Sikes has established a dedicated test bench to test and analyse the electrical performance of the filter under various operating conditions.

The test system simulates the actual working environment of EC fans and collects key parameters such as current wave forms, harmonic content, power factor, and operating status before and after filtering. These data are used to evaluate the filter’s effectiveness in harmonic suppression, power quality improvement, and system stability enhancement.

Through testing, the filter’s operational performance under different load conditions can be verified, providing data support for product parameter design, performance optimization, and practical engineering applications.

Applications

Suitable for data centers, HVAC, industrial cooling, and other EC fan harmonic mitigation applications

Data centers and server rooms

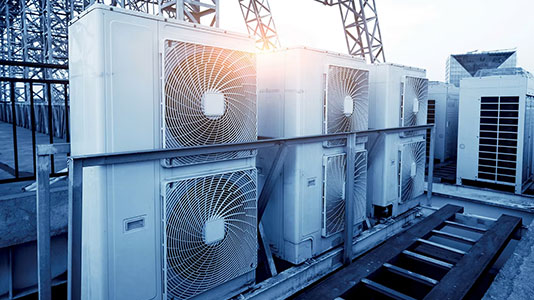

HVAC (Heating, Ventilation, and Air Conditioning) systems
Industrial cooling and ventilation systems

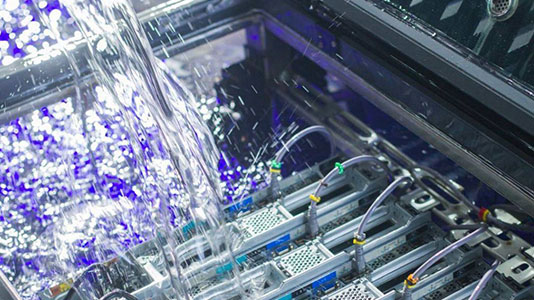

Liquid cooling systems and high-density thermal dissipation equipment

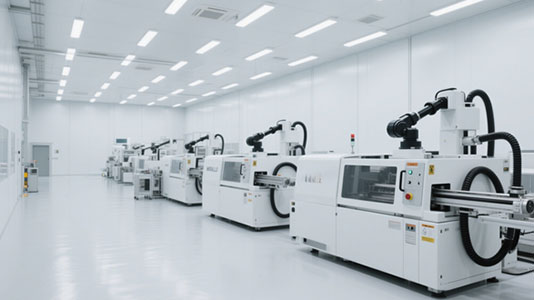

Clean rooms and precision manufacturing environments
Commercial buildings and smart buildings

Conclusion

With the increasing adoption of EC fans in data centers, HVAC systems, industrial cooling, and other fields, the harmonic current issues arising from their power-electronic drive characteristics have drawn growing attention. Harmonics can lead to current waveform distortion, reduced power factor, increased equipment heating, and degraded stability of the power supply system.

In response to the operating characteristics of EC fans, Sikes dedicated filter for EC fans employs LC passive filtering technology, forming a filtering network with inductors, capacitors, and other components to suppress the characteristic harmonics generated by the fans and improve overall power quality. This solution features a simple structure and high reliability, making it suitable for EC fan applications with relatively stable loads. It helps mitigate harmonic impacts and enhances the operational stability of the power supply system.
